IAA

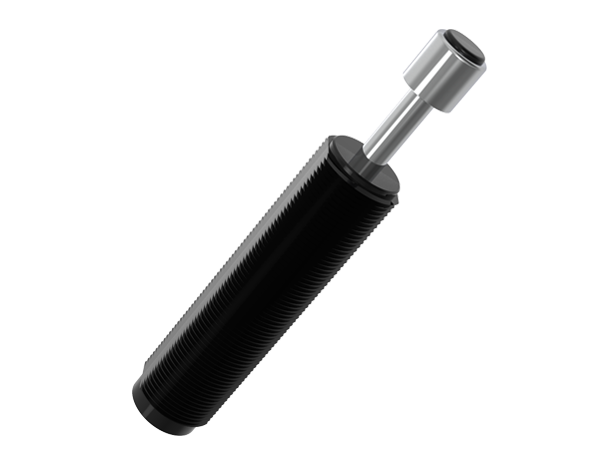

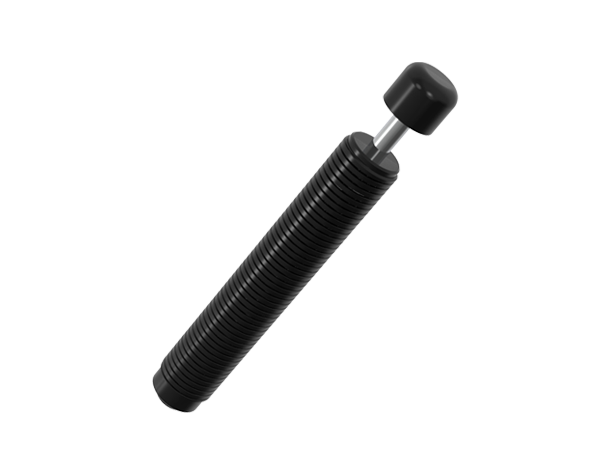

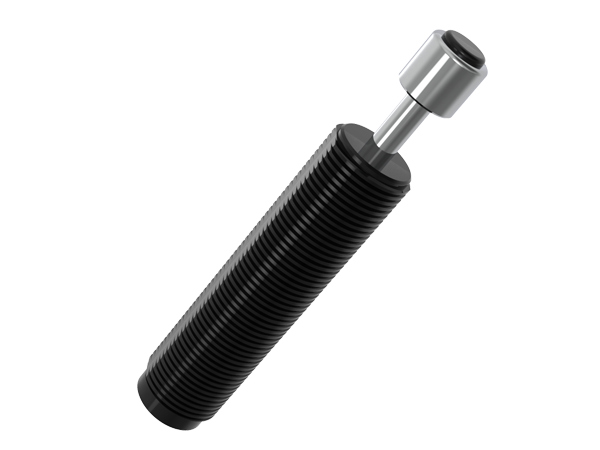

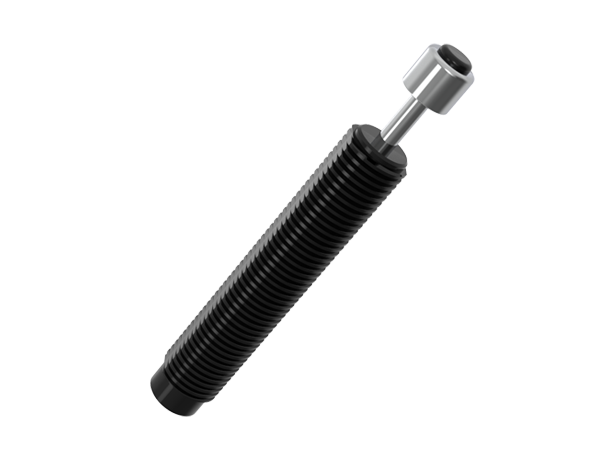

IZMAC mini Absorber Adustable type
Description
IAA has dial which can set 12 steps of shock speed ranges and it is uparaded on wider damping ranges. Energy capacity was lmproved over 200% and effective weight ranges become wider than before.
Features

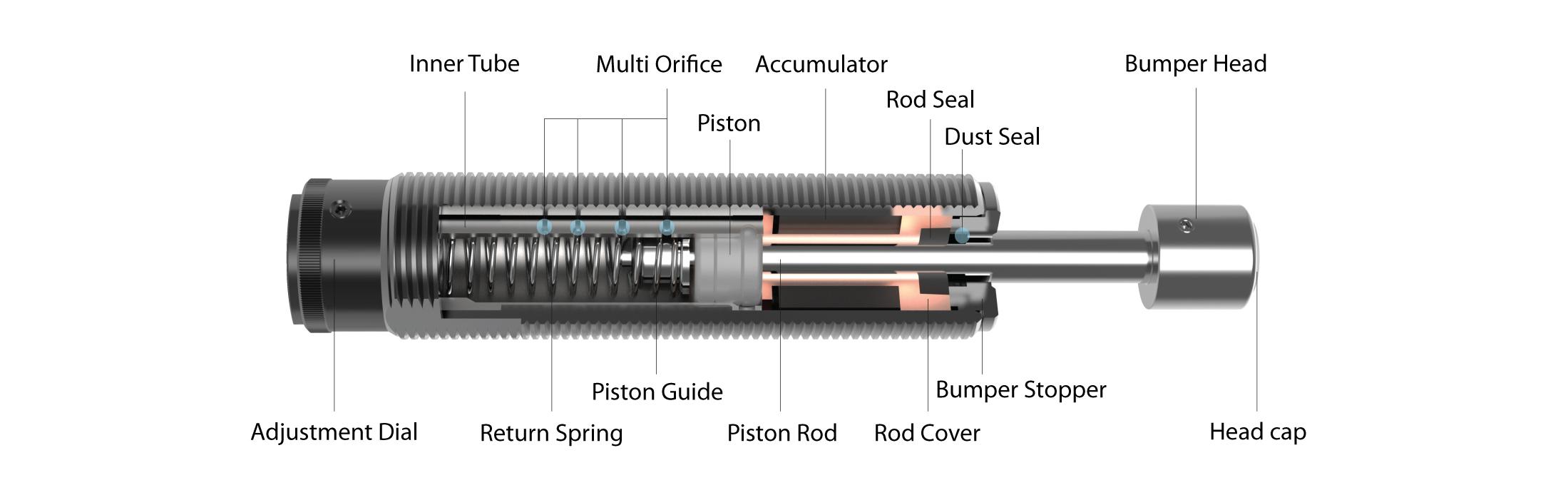

1 All threaded body outside helps to install shock absorber and it can be fixed exact position. And it
helps also to dissipate more shock energy by increased surface dimension.
2 Body surface treated as alloyed black colored steel or Zn-Ni and it develop anti corrosion features highly.
3 Stop collar is not necessory when shock absorber has steel head, and poly pad & urethane cap will helps to decrease collision noises efficiently
4 Rod cover is made of long lasting materials with function of seal protection and that enable to guarantee long life.
5 Speed ranges : 0.3 ~ 5m/s • Low Velocity (LV) : 0.08 ~ 1.3m/s
6 Temperature ranges standard : -10 ~ 80℃ • Special : -40 ~ 120℃
Applications
Pick N place robot, machining tools, automobile assembly line, tire assembly line, crane, safety devices and all other industrial ranges of multi purposes.
IAA Ordering Information
Model Series
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
IAA10-07(B) | 7 | 5.5 | 15,000 | 1 - 123 | M10X1.0 |
 |
IAA12-10(B) | 10 | 16 | 30,500 | 1.5 - 333 | M12X1.0 |
 |
IAA14-12(B) | 12 | 18 | 38,000 | 1.8 - 400 | M14X1.5 |
 |
IAA16-12(B) | 12 | 24 | 47,200 | 2 - 530 | M16X1.5 |
 |
IAA20-15(B) | 15 | 56 | 58,000 | 4.5 - 1,240 | M20X1.5 |
 |
IAA25-25(B) | 25 | 150 | 96,000 | 11.5 - 3,330 | M25X1.5 |
 |
IAA27-25(B) | 25 | 150 | 96,000 | 11.5 - 3,330 | M27X3.0 |
 |
IAA27-25F(B) | 25 | 150 | 96,000 | 11.5 - 3,330 | M27X1.5 |
 |
IAA36-25(B) | 25 | 300 | 108,000 | 24 - 6,667 | M36X1.5 |
 |
IAA36-50(B) | 50 | 615 | 142,000 | 49 - 13,667 | M36X1.5 |
