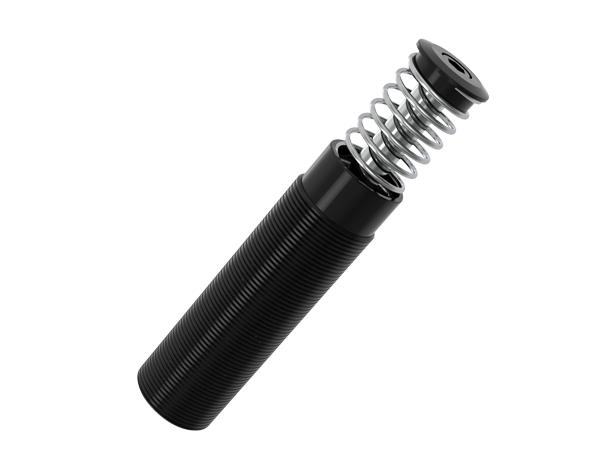

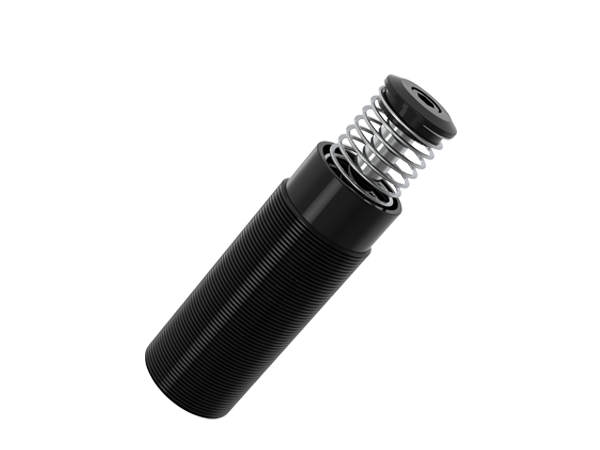

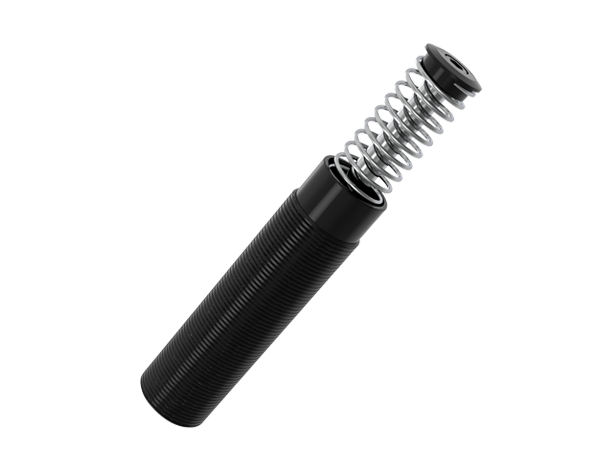

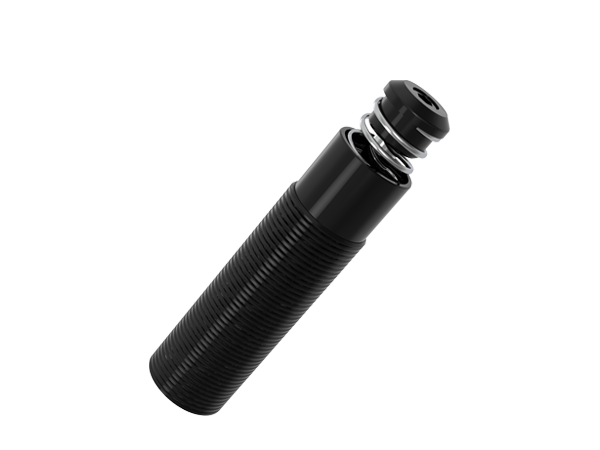

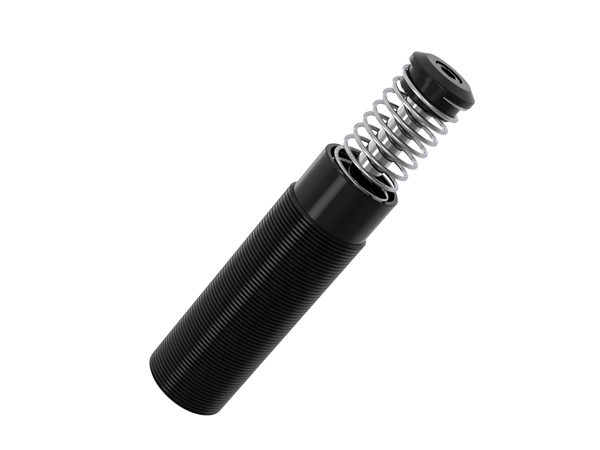

IMS04~36 Series is self compensating type and it control the damping power itself against damping speed.

Energy capacity was Improved over 200% and effective weight ranges become wider than before.

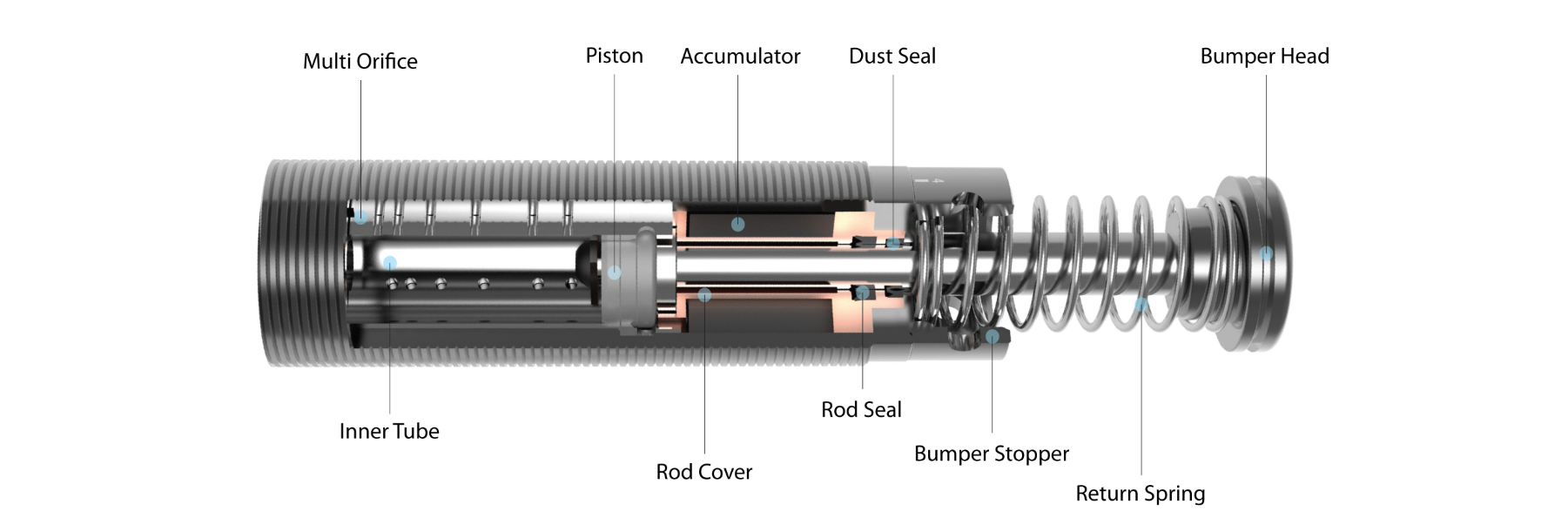

1. All threaded body outside helps to install shock absorber and it can be fixed exact position.

And it helps also to dissipate more shock energy by increased surface dimension.
2. Body surface treated as alloyed black colored steel or Zn-Ni and it develop anti corrosion features highly.

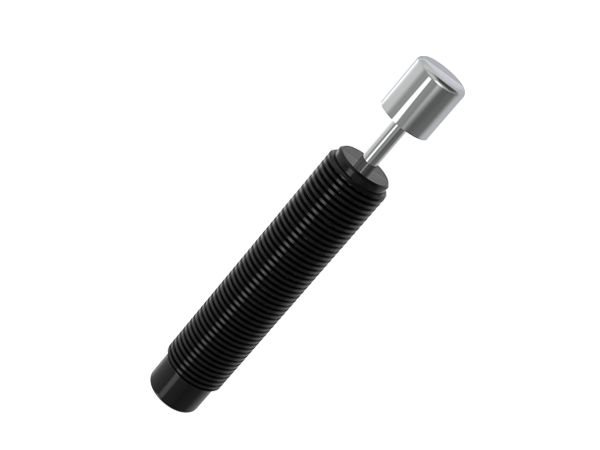

3. Stop collar is not necessory when shock absorber has steel head, and poly pad & urethane cap will helps to decrease collision noises efficiently.
4. Rod cover is made of long lasting materials with function of seal protection and that enable to guarantee long life.
5. Speed ranges : 0.3 ~ 5m/s
6. Temperature ranges : -10 ~ 80℃ • Special : -40 ~ 120℃(Oil and seal)







---







IMS33~115 Series is medium and large size and the specific adjustment is possible by 12 steps’ adjustment dial at front and end.

And at front side, the function of adjustment stop collar is included.









1. According to the collision speed, you can fit the buffer dial from 0 to 300 degrees in 12 steps.
2. Adjustment is easy in various installation environment by adopting front and rear adjustment dial.
3. Shock absober body is built as one body, not only robust also fundamentally solves the shoot out trouble so called bottom out problem.
4. The entire body is threaded and easy to assemble. Also, due to the surface area is increased, the heat energy which comes from shock absorption can be emitted to the outside faster.
5. Piston rod is hard chrome-plated. Rod cover is a special material that can be used even for a long time, it protects seal and guarantees life.
6. Body surface treatment is resistant to corrosion by nickel plating or alloy plating (Black).
7. By using urethane cap, noise can be reduced.
8. Speed ranges standard : 0.3 ~ 5m/s
9. Temperature ranges standard : -10 ~ 80℃ • Special : -40 ~ 120℃(Oil and seal)



Pick N place robotic line, machining tools, automobile assembly line, tire assembly line, crane, safety devices and all other industrial ranges of multi purposes.
