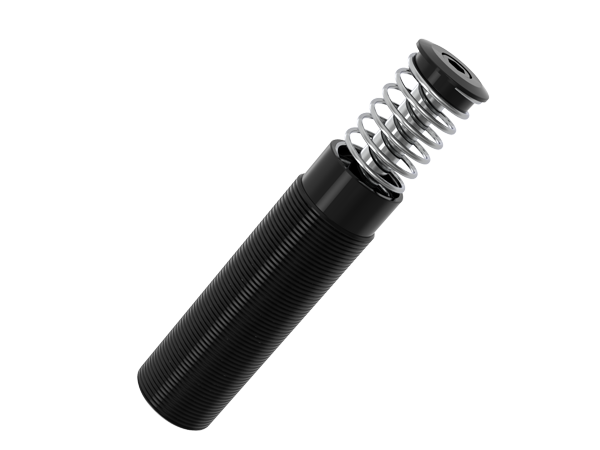

IMS115 Series
IZMAC Mini & Middle class absorber Self-compensating
IMS115 Series
Izmac Middle class absorber Self-compensating
Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
Effective Weight Ranges : -1 -2 -3 -4 -5
Body Thread Size : 115
Stroke : 50, 100, 150, 200, 250
Effective Weight Ranges : -1 -2 -3 -4 -5
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
IMS115-50 | 50 | 11,000 | 3,300,000 | 300 - 498,000 | M115X2.0P |
 |
IMS115-100 | 100 | 22,600 | 4,520,000 | 630 - 1,024,000 | M115X2.0P |
 |
IMS115-150 | 150 | 34,000 | 5,100,000 | 950 - 1,541,000 | M115X2.0P |
 |
IMS115-200 | 200 | 45,000 | 6,300,000 | 1,300 - 2,040,000 | M115X2.0P |
 |
IMS115-250 | 250 | 56,000 | 6,720,000 | 1,500 - 2,539,000 | M115X2.0P |
