Model	Stroke (mm)	Max.Energy/ Cycle(Nm)E_T	Max.Energy/ Hour(Nm/h)E_tC	Effctive Weight(kg)	M
IMS64-50	50	2,400	240,000	60 - 108,800	M64X2.0P
IMS64-100	100	5,000	350,000	140 - 226,700	M64X2.0P
IMS64-150	150	8,000	400,000	220 - 362,000	M64X2.0P

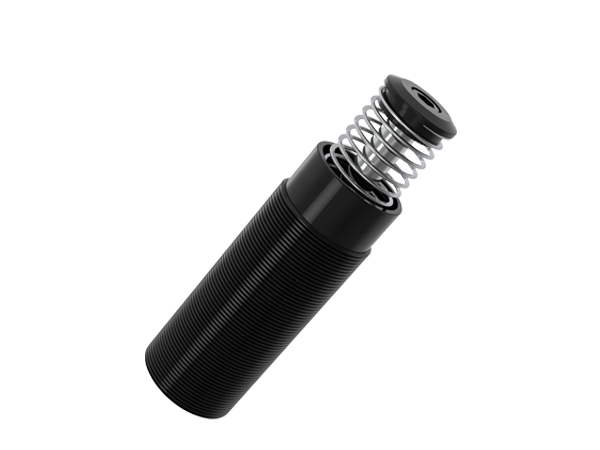

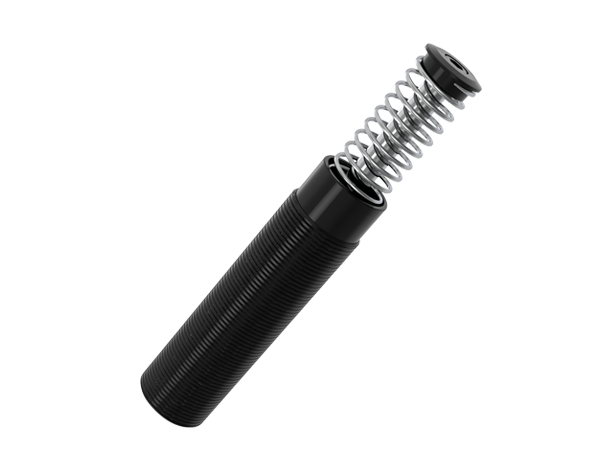

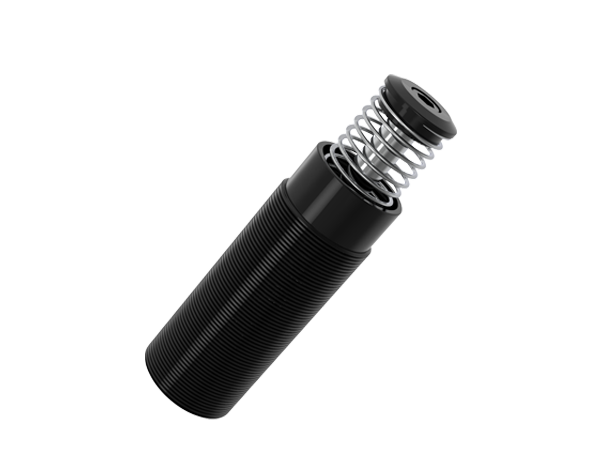

IZMAC Mini & Middle class absorber Self-compensating

Izmac Middle class absorber Self-compensating
Body Thread Size : 64
Stroke : 50, 100, 150
Effective Weight Ranges : -1 -2 -3 -4 -5

inquiry

Model	Stroke (mm)	Max.Energy/ Cycle(Nm)E_T	Max.Energy/ Hour(Nm/h)E_tC	Effctive Weight(kg)	M
IMS64-50	50	2,400	240,000	60 - 108,800	M64X2.0P
IMS64-100	100	5,000	350,000	140 - 226,700	M64X2.0P
IMS64-150	150	8,000	400,000	220 - 362,000	M64X2.0P
