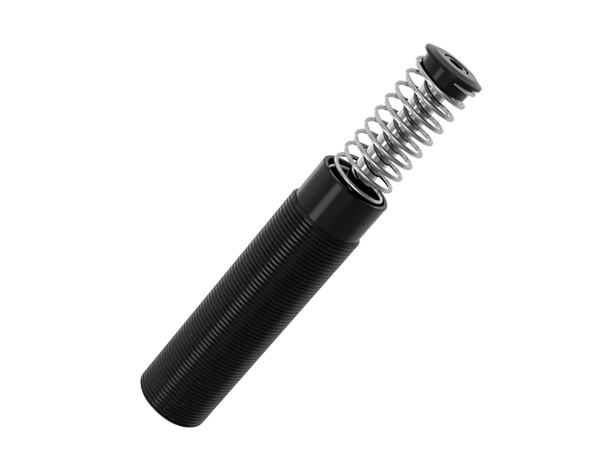

IMS85 Series
IZMAC Mini & Middle class absorber Self-compensating
IMS85 Series
Izmac Middle class absorber Self-compensating
Body Thread Size : 85
Stroke : 50, 100, 150, 200, 250
Effective Weight Ranges : -1 -2 -3 -4 -5
Body Thread Size : 85
Stroke : 50, 100, 150, 200, 250
Effective Weight Ranges : -1 -2 -3 -4 -5
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
IMS85-50 | 50 | 4,000 | 1,200,000 | 110 - 181,000 | M85X2.0P |
 |
IMS85-100 | 100 | 8,500 | 1,700,000 | 230 - 385,000 | M85X2.0P |
 |
IMS85-150 | 150 | 13,500 | 2,025,000 | 370 - 612,000 | M85X2.0P |
 |
IMS85-200 | 200 | 19,000 | 2,660,000 | 530 - 861,000 | M85X2.0P |
 |
IMS85-250 | 250 | 23,500 | 2,820,000 | 650 - 1,065,000 | M85X2.0P |
