Model	Stroke (mm)	Max.Energy/ Cycle(Nm)E_T	Max.Energy/ Hour(Nm/h)E_tC	Effctive Weight(kg)	M
IHA85-50	50	2,300	370,000	200 - 37,000	M85X2.0P
IHA85-90	90	4,000	650,000	230 - 40,000	M85X2.0P
IHA85-125	125	5,700	930,000	300 - 43,000	M85X2.0P
IHA85-165	165	7,300	1,210,000	360 - 45,000	M85X2.0P

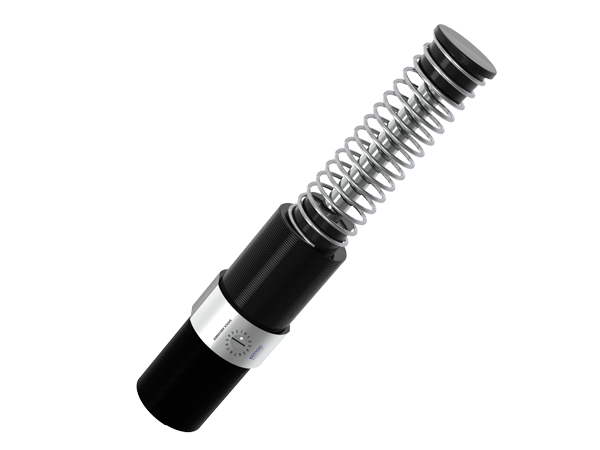

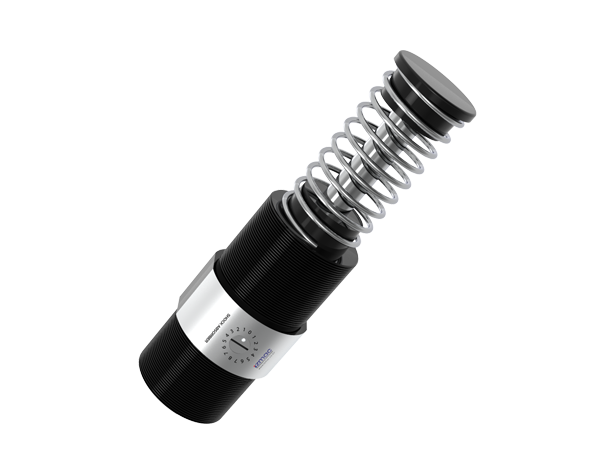

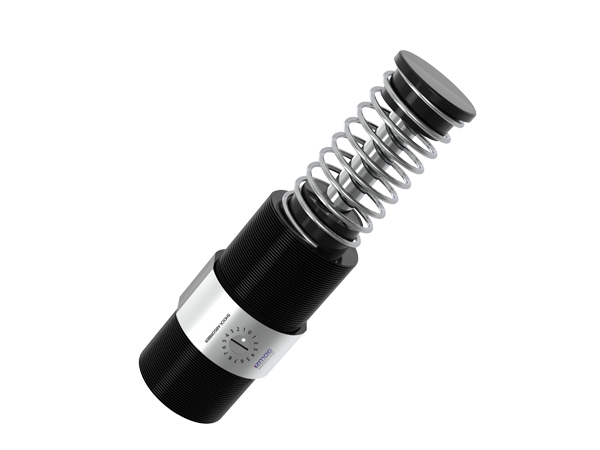

IHA85

IZMAC Heavy type Absorber

IHA85

Heavy type Absorber
Body Thread Size : 85
Stroke : 50, 90, 125, 165

inquiry

Installation Size

Image	Model	Stroke (mm)	Max.Energy/ Cycle(Nm)E_T	Max.Energy/ Hour(Nm/h)E_tC	Effctive Weight(kg)	M
	IHA85-50	50	2,300	370,000	200 - 37,000	M85X2.0P
	IHA85-90	90	4,000	650,000	230 - 40,000	M85X2.0P
	IHA85-125	125	5,700	930,000	300 - 43,000	M85X2.0P
	IHA85-165	165	7,300	1,210,000	360 - 45,000	M85X2.0P
