ISA64

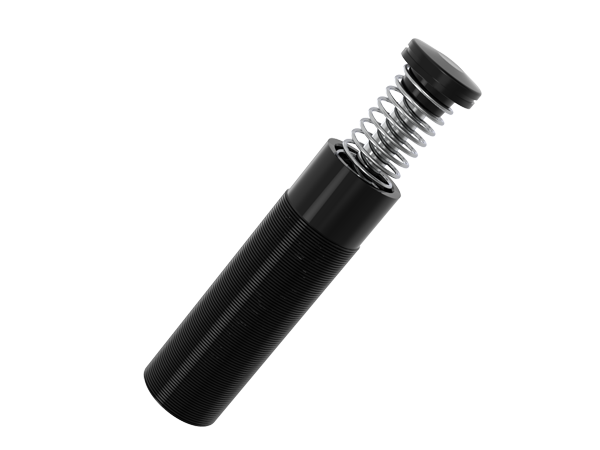

IZMAC straight type Absorber (middle class)
ISA64
straight type Absorber (middle class)
Body Thread Size : 64
Stroke : 25, 50, 75, 100, 125, 150
Body Thread Size : 64
Stroke : 25, 50, 75, 100, 125, 150
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(Nm)ET |
Max.Energy/ Hour(Nm/h)EtC |
Effctive Weight(kg) |
M |
|---|---|---|---|---|---|---|
 |
ISA64-25 | 25 | 1,250 | 152,000 | 92 - 24,400 | M64X2.0P |
 |
ISA64-50 | 50 | 2,500 | 248,000 | 185 - 48,800 | M64X2.0P |
 |
ISA64-75 | 75 | 3,750 | 265,000 | 277 - 73,240 | M64X2.0P |
 |
ISA64-100 | 100 | 5,000 | 360,000 | 370 - 97,650 | M64X2.0P |
 |
ISA64-125 | 125 | 6,250 | 413,000 | 462 - 122,000 | M64X2.0P |
 |
ISA64-150 | 150 | 7,500 | 450,000 | 555 - 146,480 | M64X2.0P |
