IHG100

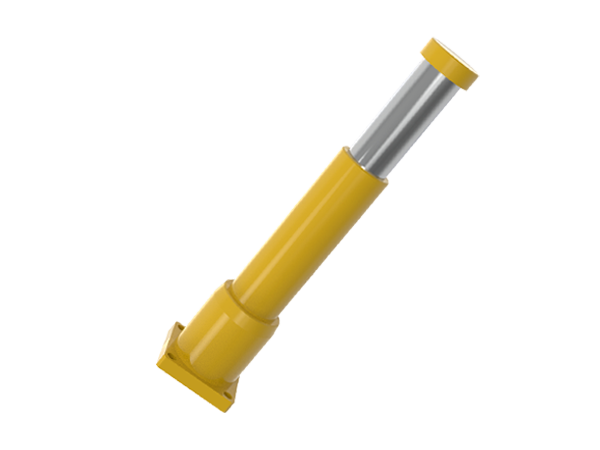

IZMAC Hydraulic Gas & Oil type Buffer
IHG100
Hydraulic Gas & Oil type Buffer
Body Thread Size : 100
Stroke : 80, 100, 150, 200, 250, 300
Body Thread Size : 100
Stroke : 80, 100, 150, 200, 250, 300
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |
IHG100-80 | 80 | 16 | 250 |
 |
IHG100-100 | 100 | 20 | 250 |
 |
IHG100-150 | 150 | 30 | 250 |
 |
IHG100-200 | 200 | 40 | 250 |
 |
IHG100-250 | 250 | 50 | 250 |
 |
IHG100-300 | 300 | 60 | 250 |
