Hydraulic Buffer
카테고리 4단계

카테고리 4단계

Product Category

Series

Series

Model

Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Buffer Force(kN)F_s
IHG120-100	100	40	500
IHG120-150	150	60	500
IHG120-200	200	80	500
IHG120-250	250	100	500
IHG120-300	300	120	400
IHG120-400	400	160	400
IHG120-500	500	180	400
IHG120-600	600	200	400
IHG120-800	800	240	375
IHG120-1000	1,000	280	350

IHG120

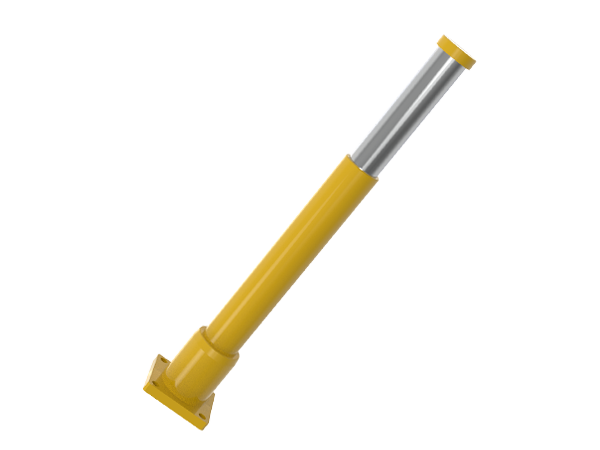

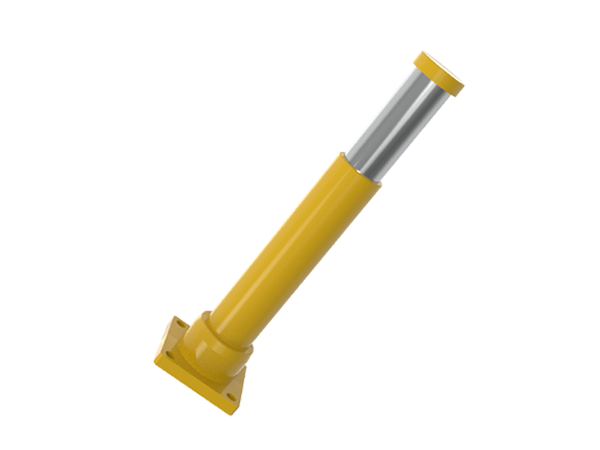

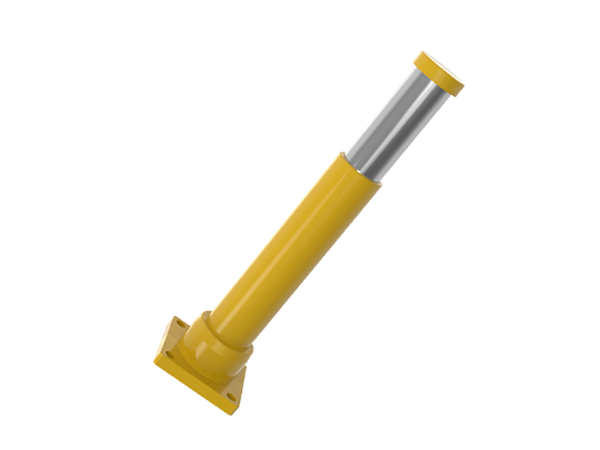

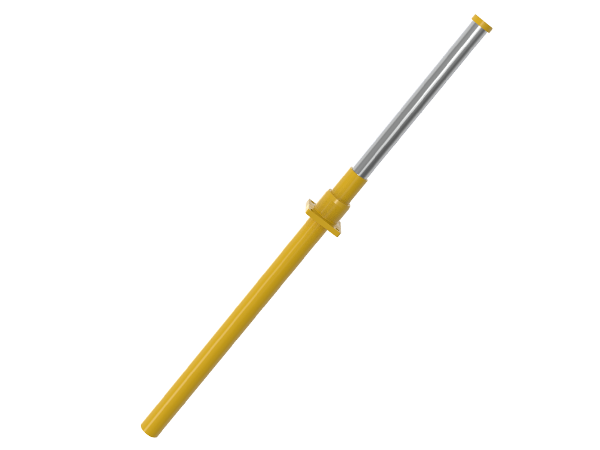

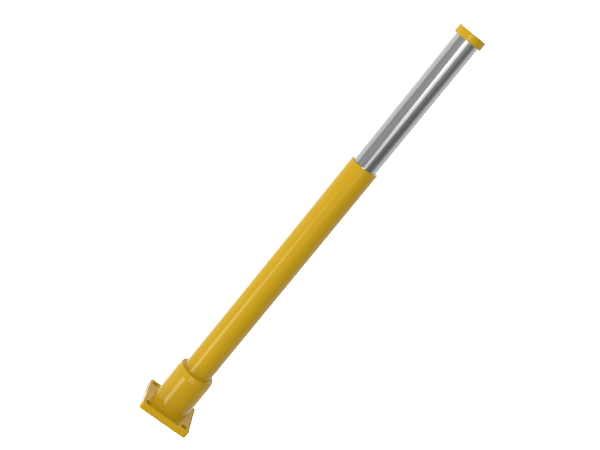

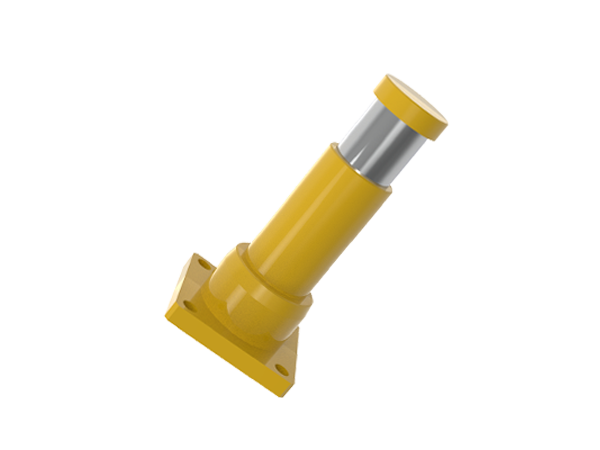

IZMAC Hydraulic Gas & Oil type Buffer

IHG120

Hydraulic Gas & Oil type Buffer
Body Thread Size : 120
Stroke : 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000

inquiry

Installation Size

Image	Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Buffer Force(kN)F_s
	IHG120-100	100	40	500
	IHG120-150	150	60	500
	IHG120-200	200	80	500
	IHG120-250	250	100	500
	IHG120-300	300	120	400
	IHG120-400	400	160	400
	IHG120-500	500	180	400
	IHG120-600	600	200	400
	IHG120-800	800	240	375
	IHG120-1000	1,000	280	350
