ISC

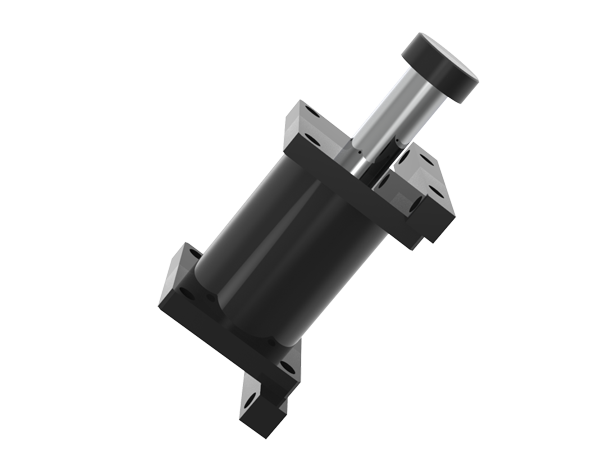

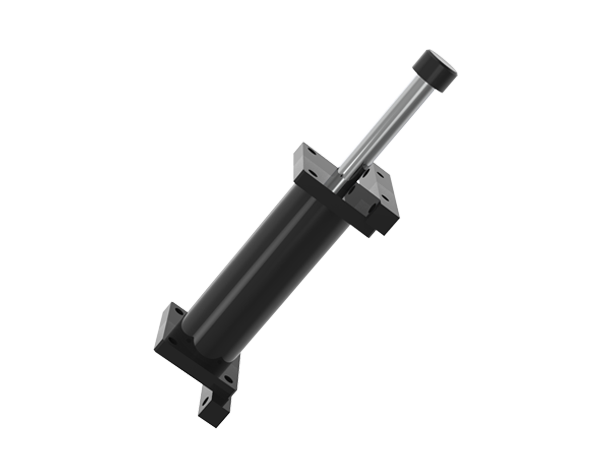

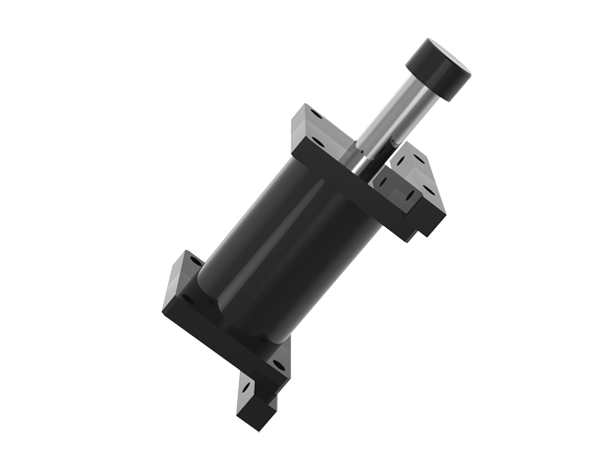

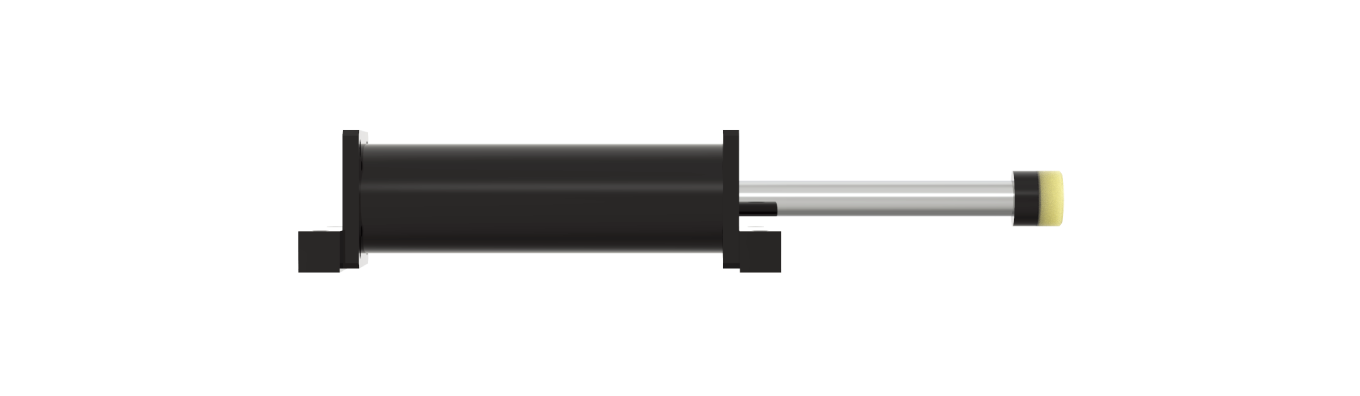

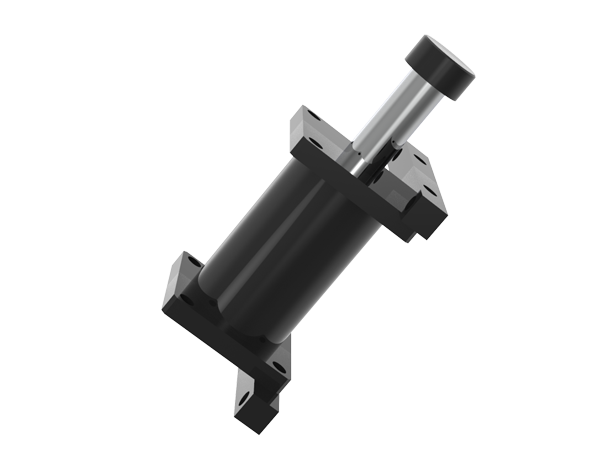

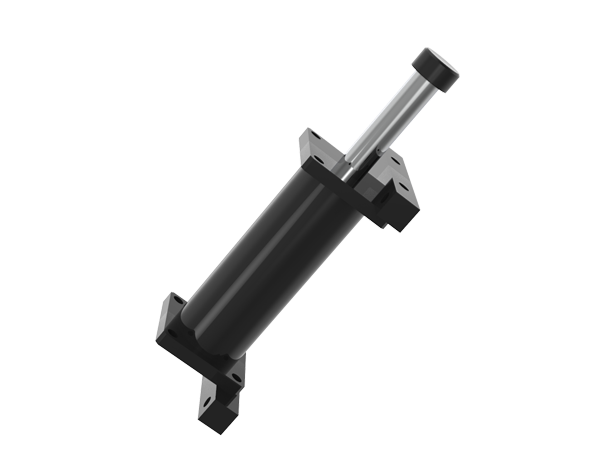

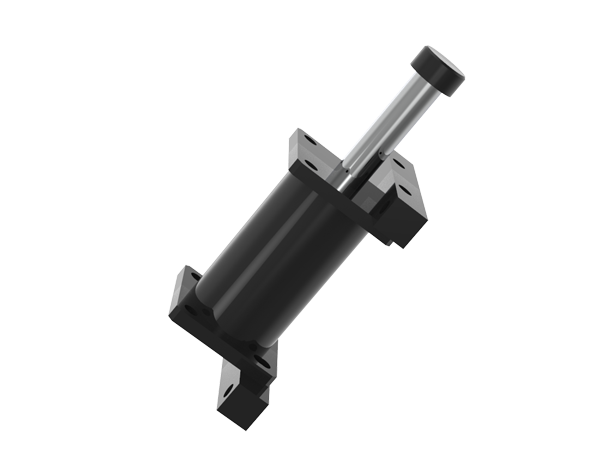

IZMAC Hydraulic Gas & Oil Stacker Crane Buffer
Description
ISC model max energy capacity is upto 930kNm, and it's longest stroke is 1,200mm and it is mainly applied for automatic logistic warehouse system(AS/RS). Engineered to maintain rather Low Peak
figures & Low Recoil Force figures. Therefore it can be operated by lowest rebounding force and decelerate softly in emergency stop conditions.
Features
1 Customized orifice
2 Piston rod : Hardened, Hard chrome plated
3 Cylinder : Zinc plated
4 Operation temperature : -10 ~ 80℃ • Special : -40 ~ 120℃
5 Fullfilled international standards : OSHA, AIST, CMAA, DIN, FEM etc.
6 Option : Urethane cap, Safety cable, Mounting plates
Applications
Automatic warehouse system(AS/RS), Theme park, Stacker crane, Automobile assembly line, Overhead crane
ISC Ordering Information
Model Series
-
- ISC90
- Body Thread Size : 90
Stroke : 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800
-
- ISC110
- Body Thread Size : 110
Stroke : 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1400
-
- ISC130
- Body Thread Size : 130
Stroke : 50, 75, 125, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1500
-
- ISC200
- Body Thread Size : 200
Stroke : 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800, 900, 1000, 1200
-
- ISC215
- Body Thread Size : 215
Stroke : 100, 150, 200, 250, 300, 400, 500, 600, 700, 800, 1000, 1200
-
- ISC275
- Body Thread Size : 275
Stroke : 100, 150, 200, 250, 300, 400, 500, 600, 750, 900, 1050, 1200
