Product Category

Series

Series

Model

Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/h)E_tC	Max.Buffer Force(kN)F_s
ISC90-50	50	4	190	75
ISC90-100	100	7	390	75
ISC90-150	150	10	580	75
ISC90-200	200	13	780	75
ISC90-250	250	16	830	75
ISC90-300	300	20	940	75
ISC90-350	350	23	1,260	75
ISC90-400	400	21	1,150	67
ISC90-450	450	20	1,090	55
ISC90-500	500	19	1,060	47
ISC90-600	600	15	880	31
ISC90-700	700	13	610	24
ISC90-800	800	12	530	19

ISC90

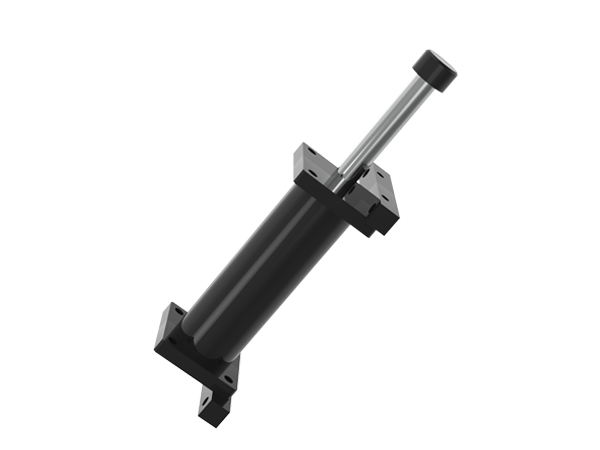

IZMAC Hydraulic Gas & Oil Stacker Crane Buffer

ISC90

Hydraulic Gas & Oil Stacker Crane Buffer
Body Thread Size : 90
Stroke : 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800

inquiry

Installation Size

Image	Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/hr)EtC	Max.Buffer Force(kN)F_s
	ISC90-50	50	4	190	75
	ISC90-100	100	7	390	75
	ISC90-150	150	10	580	75
	ISC90-200	200	13	780	75
	ISC90-250	250	16	830	75
	ISC90-300	300	20	940	75
	ISC90-350	350	23	1,260	75
	ISC90-400	400	21	1,150	67
	ISC90-450	450	20	1,090	55
	ISC90-500	500	19	1,060	47
	ISC90-600	600	15	880	31
	ISC90-700	700	13	610	24
	ISC90-800	800	12	530	19
