Hydraulic Buffer
카테고리 4단계

카테고리 4단계

Product Category

Series

Series

Model

Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/h)E_tC	Max.Buffer Force(kN)F_s
ISC110-50	50	5	290	115
ISC110-100	100	10	560	115
ISC110-150	150	15	880	115
ISC110-200	200	20	930	115
ISC110-250	250	25	1,050	115
ISC110-300	300	29	1,180	115
ISC110-350	350	34	1,350	115
ISC110-400	400	39	1,510	115
ISC110-450	450	44	1,680	115
ISC110-500	500	49	1,840	115
ISC110-600	600	59	2,160	115
ISC110-700	700	69	2,480	115
ISC110-800	800	79	2,800	115
ISC110-900	900	88	3,130	115
ISC110-1000	1,000	73	3,480	92
ISC110-1200	1,200	60	2,750	63
ISC110-1400	1,400	41	1,910	37

ISC110

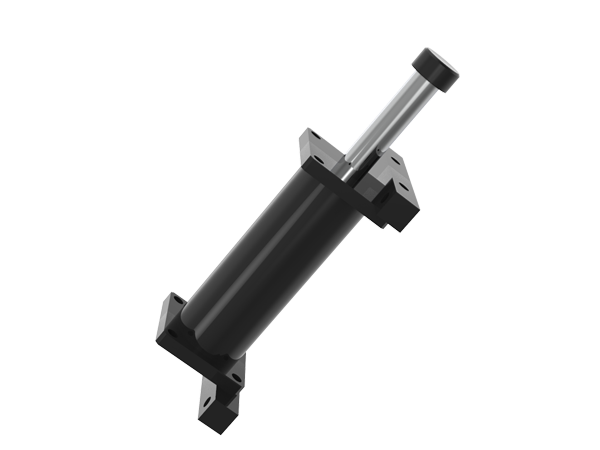

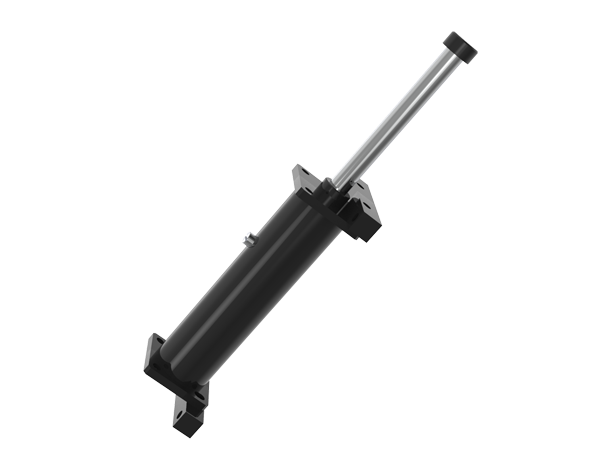

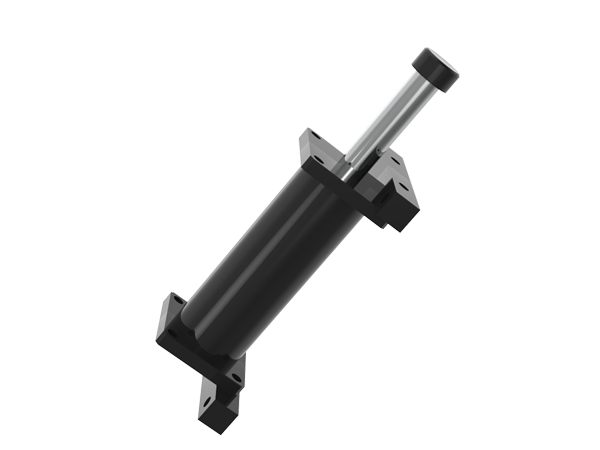

IZMAC Hydraulic Gas & Oil Stacker Crane Buffer

ISC110

Hydraulic Gas & Oil Stacker Crane Buffer
Body Thread Size : 110
Stroke : 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1400

inquiry

Installation Size

Image	Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/hr)EtC	Max.Buffer Force(kN)F_s
	ISC110-50	50	5	290	115
	ISC110-100	100	10	560	115
	ISC110-150	150	15	880	115
	ISC110-200	200	20	930	115
	ISC110-250	250	25	1,050	115
	ISC110-300	300	29	1,180	115
	ISC110-350	350	34	1,350	115
	ISC110-400	400	39	1,510	115
	ISC110-450	450	44	1,680	115
	ISC110-500	500	49	1,840	115
	ISC110-600	600	59	2,160	115
	ISC110-700	700	69	2,480	115
	ISC110-800	800	79	2,800	115
	ISC110-900	900	88	3,130	115
	ISC110-1000	1,000	73	3,480	92
	ISC110-1200	1,200	60	2,750	63
