Hydraulic Buffer
카테고리 4단계

카테고리 4단계

Product Category

Series

Series

Model

Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/h)E_tC	Max.Buffer Force(kN)F_s
ISC215-100	100	48	1,800	560
ISC215-150	150	72	2,050	560
ISC215-200	200	96	2,290	560
ISC215-250	250	120	2,530	560
ISC215-300	300	143	2,750	560
ISC215-400	400	191	3,260	560
ISC215-500	500	239	4,230	560
ISC215-600	600	287	4,740	560
ISC215-700	700	334	5,200	560
ISC215-800	800	382	5,690	560
ISC215-1000	1,000	478	6,680	560
ISC215-1200	1,200	417	6,250	435

ISC215

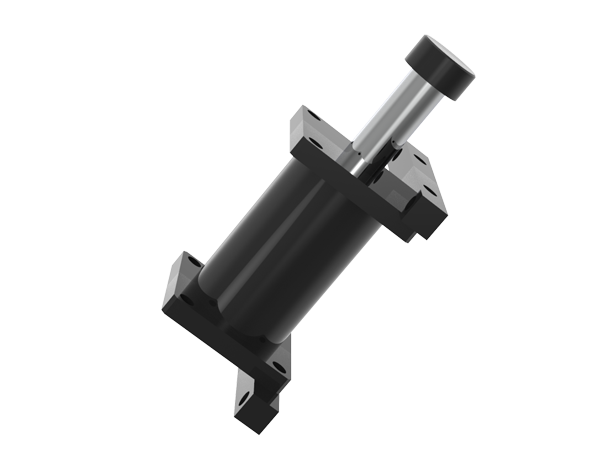

IZMAC Hydraulic Gas & Oil Stacker Crane Buffer

ISC215

Hydraulic Gas & Oil Stacker Crane Buffer
Body Thread Size : 215
Stroke : 100, 150, 200, 250, 300, 400, 500, 600, 700, 800, 1000, 1200

inquiry

Installation Size

Image	Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/hr)EtC	Max.Buffer Force(kN)F_s
	ISC215-100	100	48	1,800	560
	ISC215-150	150	72	2,050	560
	ISC215-200	200	96	2,290	560
	ISC215-250	250	120	2,530	560
	ISC215-300	300	143	2,750	560
	ISC215-400	400	191	3,260	560
	ISC215-500	500	239	4,230	560
	ISC215-600	600	287	4,740	560
	ISC215-700	700	334	5,200	560
	ISC215-800	800	382	5,690	560
	ISC215-1000	1,000	478	6,680	560
	ISC215-1200	1,200	417	6,250	435
