Hydraulic Buffer
카테고리 4단계

카테고리 4단계

Product Category

Series

Series

Model

Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/h)E_tC	Max.Buffer Force(kN)F_s
ISC275-100	100	78	2,440	915
ISC275-150	150	117	2,760	915
ISC275-200	200	156	3,050	915
ISC275-250	250	194	3,370	915
ISC275-300	300	233	3,760	915
ISC275-400	400	311	4,300	915
ISC275-500	500	389	4,930	915
ISC275-600	600	467	6,180	915
ISC275-750	750	583	7,110	915
ISC275-900	900	700	8,040	915
ISC275-1050	1,050	816	8,970	915
ISC275-1200	1,200	790	8,060	827

ISC275

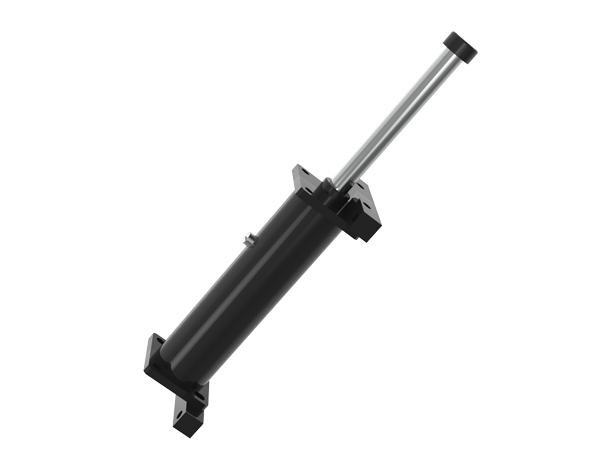

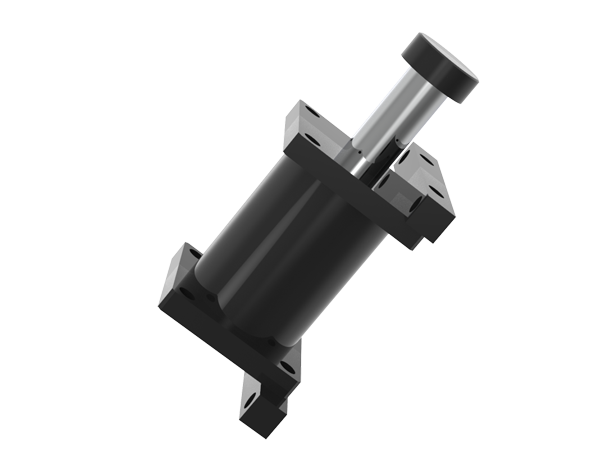

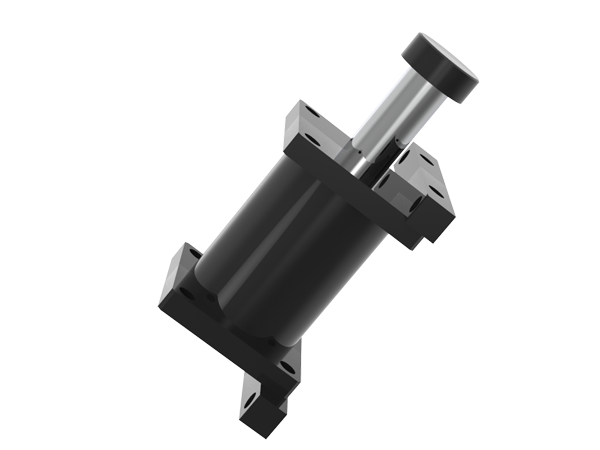

IZMAC Hydraulic Gas & Oil Stacker Crane Buffer

ISC275

Hydraulic Gas & Oil Stacker Crane Buffer
Body Thread Size : 275
Stroke : 100, 150, 200, 250, 300, 400, 500, 600, 750, 900, 1050, 1200

inquiry

Installation Size

Image	Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/hr)EtC	Max.Buffer Force(kN)F_s
	ISC275-100	100	78	2,440	915
	ISC275-150	150	117	2,760	915
	ISC275-200	200	156	3,050	915
	ISC275-250	250	194	3,370	915
	ISC275-300	300	233	3,760	915
	ISC275-400	400	311	4,300	915
	ISC275-500	500	389	4,930	915
	ISC275-600	600	467	6,180	915
	ISC275-750	750	583	7,110	915
	ISC275-900	900	700	8,040	915
	ISC275-1050	1,050	816	8,970	915
	ISC275-1200	1,200	790	8,060	827
