ICA

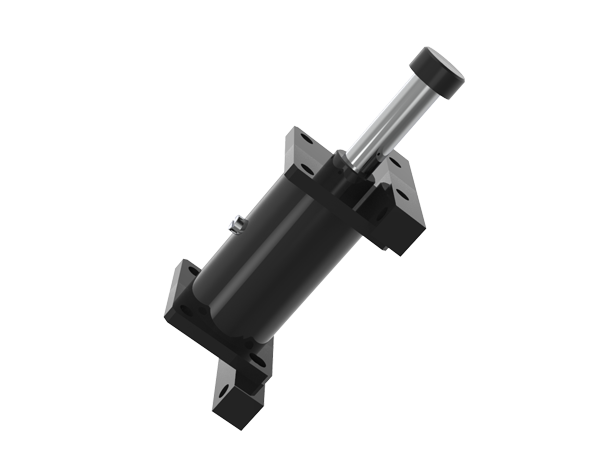

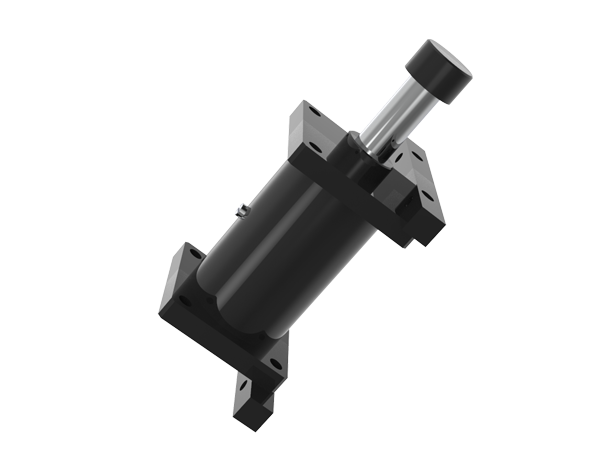

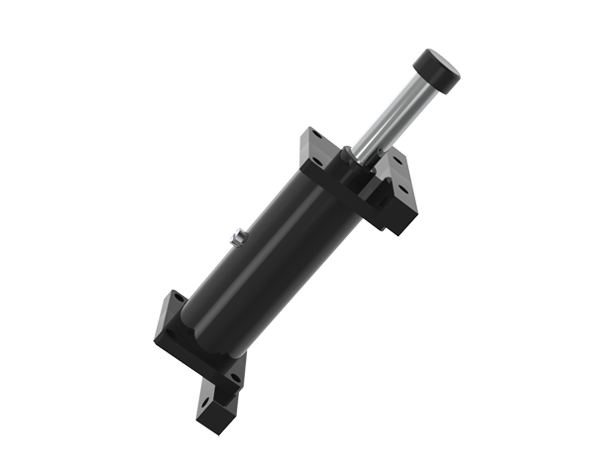

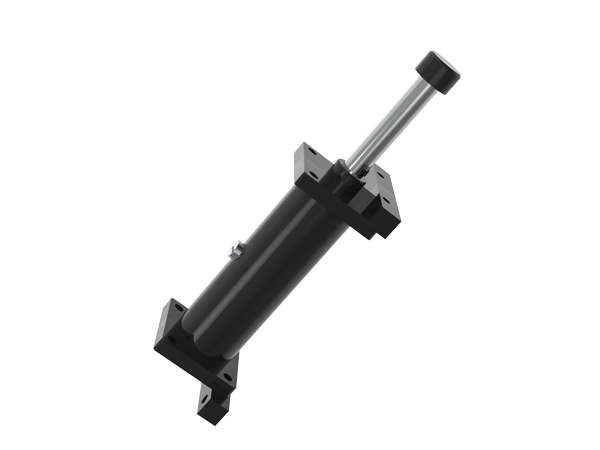

IZMAC Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
Description
ICA is newly launched state-of-the-art dial type buffer which is engineered to select damping forces against wide application conditions. Engineered to maintain rather low peak figures &
rebounding forces. Therefore it can be operated by lowest rebounding force and decelerate softly in emergency stop conditions. Used for mainly stacker crane application in automated logistic system, dial type has models upto 300mm stroke and maximum energy 82 kNm, there are front dial control type & back dial control type according to the dial location.
Features
1. Customized orifice
2. Piston rod surface treatment : Hardened, Hard chrome plated
3. Body surface treatment : White zinc plated
4. Operation temperature : -10 ~ 80℃ • Special : -40 ~ 120℃
5. Fullfilled international standards : OSHA, AISE,AIST, CMAA, DIN, FEM etc.
6. Option : Urethane cap, Safety cable, Mounting plates, Adjustment dial position
Applications
Automatic warehouse stacker crane, logistic automation system, amusement park, STS crane, production facilities.
ICA Ordering Information
Model Series
-
- ICA90
- Body Thread Size : 90
Stroke : 50, 100, 150, 200, 250, 300
-
- ICA110
- Body Thread Size : 110
Stroke : 50, 100, 150, 200, 250, 300
-
- ICA130
- Body Thread Size : 130
Stroke : 50, 100, 150, 200, 250, 300
-
- ICA160
- Body Thread Size : 160
Stroke : 50, 100, 150, 200, 250, 300
-
- ICA180
- Body Thread Size : 180
Stroke : 50, 100, 150, 200, 250, 300
-
- ICA200
- Body Thread Size : 200
Stroke : 50, 100, 150, 200, 250, 300
