ICA160

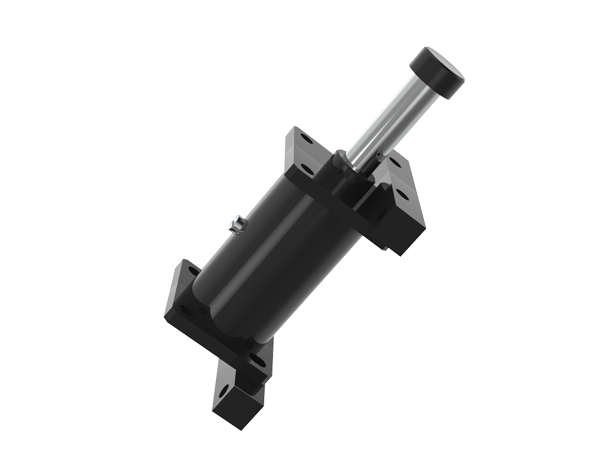

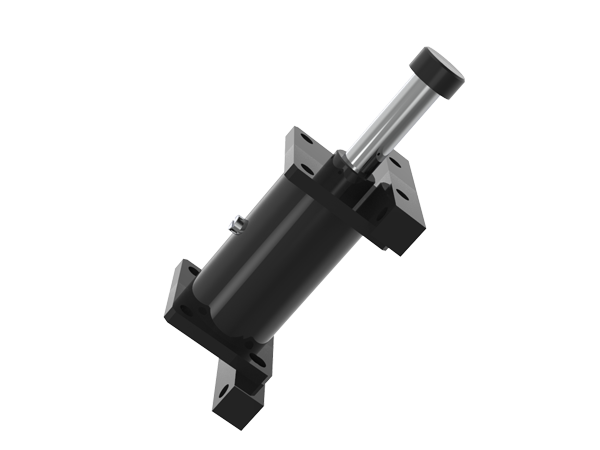

IZMAC Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
ICA160
Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
Body Thread Size : 160
Stroke : 50, 100, 150, 200, 250, 300
Body Thread Size : 160
Stroke : 50, 100, 150, 200, 250, 300
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |
ICA160-50 | 50 | 10 | 267 |
 |
ICA160-100 | 100 | 21 | 267 |
 |
ICA160-150 | 150 | 32 | 267 |
 |
ICA160-200 | 200 | 42 | 267 |
 |
ICA160-250 | 250 | 53 | 267 |
 |
ICA160-300 | 300 | 64 | 267 |
