ICA110

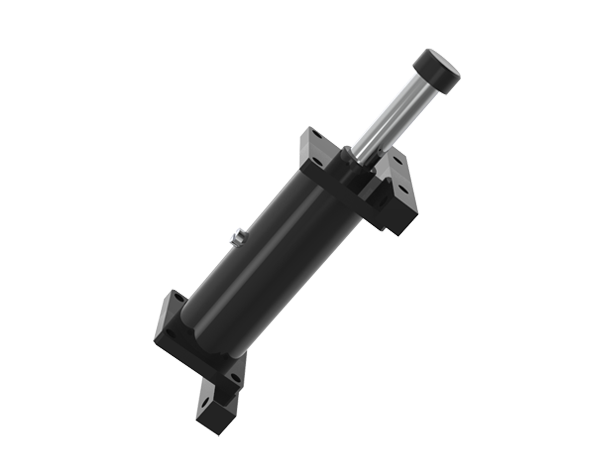

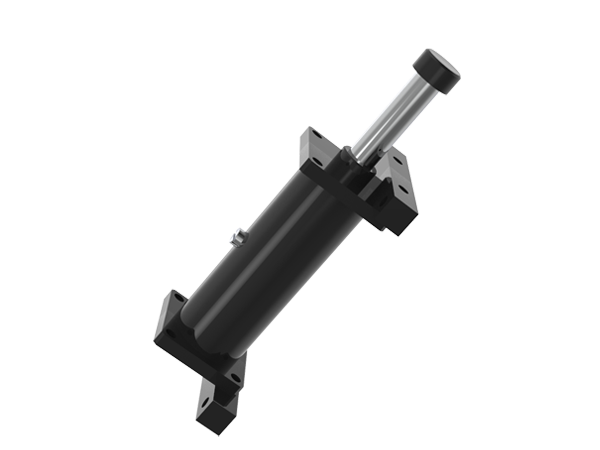

IZMAC Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
ICA110
Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
Body Thread Size : 110
Stroke : 50, 100, 150, 200, 250, 300
Body Thread Size : 110
Stroke : 50, 100, 150, 200, 250, 300
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |
ICA110-50 | 50 | 4 | 114 |
 |
ICA110-100 | 100 | 9 | 114 |
 |
ICA110-150 | 150 | 13 | 114 |
 |
ICA110-200 | 200 | 18 | 114 |
 |
ICA110-250 | 250 | 23 | 114 |
 |
ICA110-300 | 300 | 27 | 114 |
