ICA180

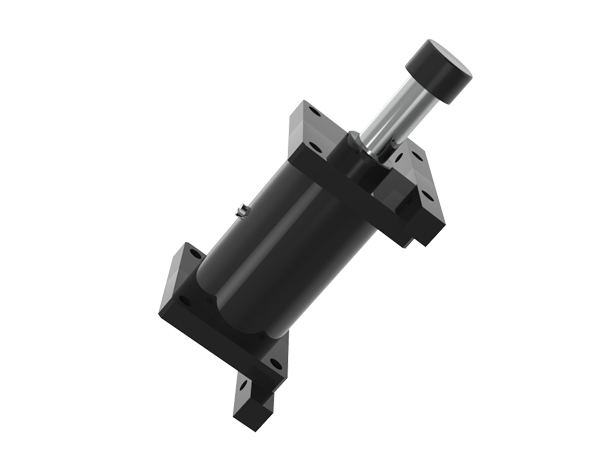

IZMAC Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
ICA180
Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
Body Thread Size : 180
Stroke : 50, 100, 150, 200, 250, 300
Body Thread Size : 180
Stroke : 50, 100, 150, 200, 250, 300
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |
ICA180-50 | 50 | 13 | 338 |
 |
ICA180-100 | 100 | 27 | 338 |
 |
ICA180-150 | 150 | 40 | 338 |
 |
ICA180-200 | 200 | 54 | 338 |
 |
ICA180-250 | 250 | 67 | 338 |
 |
ICA180-300 | 300 | 81 | 338 |
