ICA200

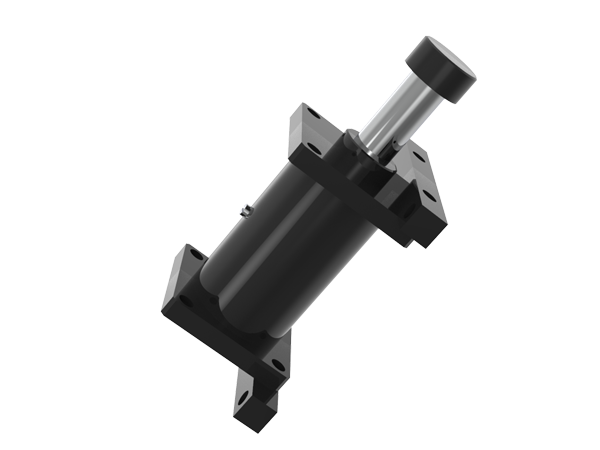

IZMAC Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
ICA200
Hydraulic Gas & Oil Stacker Crane Adjustable Buffer
Body Thread Size : 200
Stroke : 50, 100, 150, 200, 250, 300
Body Thread Size : 200
Stroke : 50, 100, 150, 200, 250, 300
Installation Size
| Image | Model | Stroke (mm) |
Max.Energy/ Cycle(KJ)ET |
Max.Buffer Force(kN)Fs |
|---|---|---|---|---|
 |
ICA200-50 | 50 | 15 | 376 |
 |
ICA200-100 | 100 | 30 | 376 |
 |
ICA200-150 | 150 | 45 | 376 |
 |
ICA200-200 | 200 | 60 | 376 |
 |
ICA200-250 | 250 | 75 | 376 |
 |
ICA200-300 | 300 | 90 | 376 |
