Hydraulic Buffer
카테고리 4단계

카테고리 4단계

Product Category

Series

Series

Model

Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/h)E_tC	Max.Buffer Force(kN)F_s
ISC130-50	50	10	590	245
ISC130-75	75	15	650	245
ISC130-125	125	25	810	245
ISC130-200	200	39	1,110	245
ISC130-250	250	49	1,310	245
ISC130-300	300	58	1,510	245
ISC130-350	350	68	1,730	245
ISC130-400	400	78	1,930	245
ISC130-450	450	88	2,130	245
ISC130-500	500	97	2,320	245
ISC130-600	600	116	2,710	245
ISC130-700	700	136	3,100	245
ISC130-800	800	155	3,480	215
ISC130-900	900	167	3,780	181
ISC130-1000	1,000	117	3,820	147
ISC130-1200	1,200	103	4,720	107
ISC130-1400	1,400	73	2,850	66
ISC130-1500	1,500	66	2,430	55

ISC130

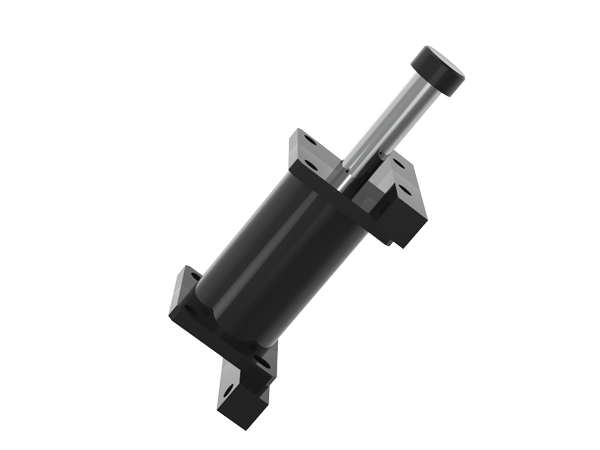

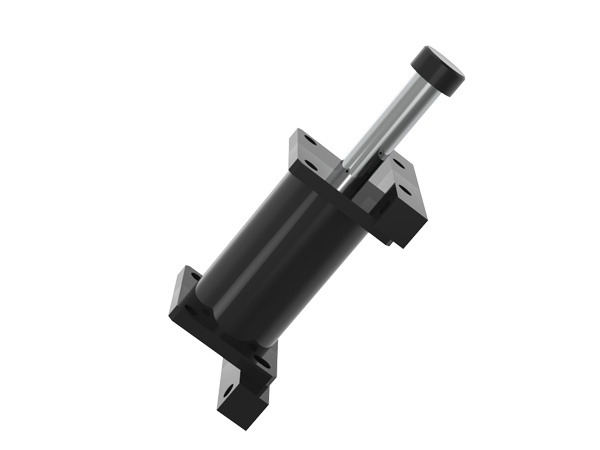

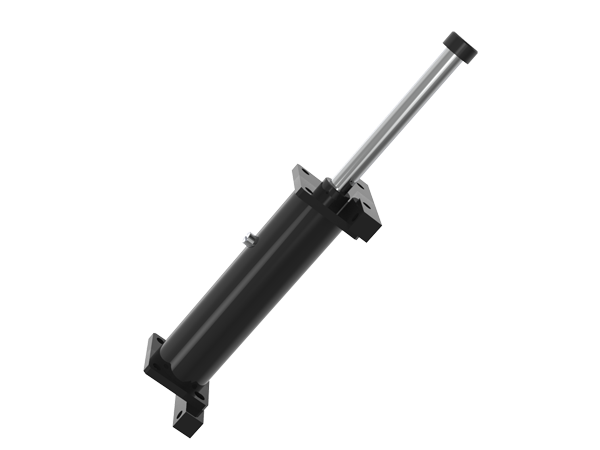

IZMAC Hydraulic Gas & Oil Stacker Crane Buffer

ISC130

Hydraulic Gas & Oil Stacker Crane Buffer
Body Thread Size : 130
Stroke : 50, 75, 125, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1500

inquiry

Installation Size

Image	Model	Stroke (mm)	Max.Energy/ Cycle(KJ)E_T	Max.Energy/ Hour(KJ/hr)EtC	Max.Buffer Force(kN)F_s
	ISC130-50	50	10	590	245
	ISC130-75	75	15	650	245
	ISC130-125	125	25	810	245
	ISC130-200	200	39	1,110	245
	ISC130-250	250	49	1,310	245
	ISC130-300	300	58	1,510	245
	ISC130-350	350	68	1,730	245
	ISC130-400	400	78	1,930	245
	ISC130-450	450	88	2,130	245
	ISC130-500	500	97	2,320	245
	ISC130-600	600	116	2,710	245
	ISC130-700	700	136	3,100	245
	ISC130-800	800	155	3,480	215
	ISC130-900	900	167	3,780	181
	ISC130-1000	1,000	117	3,820	147
	ISC130-1200	1,200	103	4,720	107
